They are directly connected to the convolution operation and Fast Fourier Transform.
One of the key operation in signal processing/machine learning is the convolution of two functions.
Let x(t) and y(t) be two given functions. Their convolution is defined as
(x * y)(t) = \int_{-\infty}^{\infty} x(\tau) y(t - \tau) d \tau.
A well-known fact: a convolution in the time domain is a product in the frequency domain.
\widehat{x}(w) = (\mathcal{F}(x))(w) = \int_{-\infty}^{\infty} e^{i w t} x(t) dt.
\mathcal{F}(x * y) = \mathcal{F}(x) \mathcal{F}(y).
(x * y)(t) = \int_{-\infty}^{\infty} x(\tau) y(t - \tau) d \tau.
Let us approximate the integral by a quadrature sum on a uniform grid, and store the signal at equidistant points.
Then we are left with the summation
z_i = \sum_{j=0}^{n-1} x_j y_{i - j},
which is called discrete convolution. This can be thought as an application of a filter with coefficients x to a signal y.
There are different possible filters for different purposes, but they all utilize the shift-invariant structure.
A discrete convolution can be thought as a matrix-by-vector product:
z_i = \sum_{j=0}^{n-1} x_j y_{i - j}, \Leftrightarrow z = Ax
where the matrix A elements are given as a_{ij} = y_{i-j}, i.e., they depend only on the difference between the row index and the column index.
A matrix is called Toeplitz if its elements are defined as
a_{ij} = t_{i - j}.
A Toeplitz matrix is completely defined by its first column and first row (i.e., 2n-1 parameters).
It is a dense matrix, however it is a structured matrix (i.e., defined by \mathcal{O}(n) parameters).
And the main operation in the discrete convolution is the product of Toeplitz matrix by vector.
Can we compute it faster than \mathcal{O}(n^2)?
For a special class of Toeplitz matrices, named circulant matrices the fast matrix-by-vector product can be done.
A matrix C is called circulant, if
C_{ij} = c_{i - j \mod n},
i.e. it periodicaly wraps
C = \begin{bmatrix} c_0 & c_3 & c_2 & c_1 \\ c_1 & c_0 & c_3 & c_2 \\ c_2 & c_1 & c_0 & c_3 \\ c_3 & c_2 & c_1 & c_0 \\ \end{bmatrix}.
Theorem:
Any circulant matrix can be represented in the form
C = \frac{1}{n} F^* \Lambda F,
where F is the Fourier matrix with the elements
F_{kl} = w_n^{kl}, \quad k, l = 0, \ldots, n-1, \quad w_n = e^{-\frac{2 \pi i}{n}},
and matrix \Lambda = \text{diag}(\lambda) is the diagonal matrix and
\lambda = F c,
where c is the first column of the circulant matrix C.
The proof will be later: now we need to study the FFT matrix.
The Fourier matrix is defined as:
F_n = \begin{pmatrix} 1 & 1 & 1 & \dots & 1 \\ 1 & w^{1\cdot 1}_n & w^{1\cdot 2}_n & \dots & w^{1\cdot (n-1)}_n\\ 1 & w^{2\cdot 1}_n & w^{2\cdot 2}_n & \dots & w^{2\cdot (n-1)}_n\\ \dots & \dots & \dots &\dots &\dots \\ 1 & w^{(n-1)\cdot 1}_n & w^{(n-1)\cdot 2}_n & \dots & w^{(n-1)\cdot (n-1)}_n\\ \end{pmatrix},
or equivalently
F_n = \{ w_n^{kl} \}_{k,l=0}^{n-1},
where
w_n = e^{-\frac{2\pi i}{n}}.
Properties: * Symmetric (not Hermitian!) * Unitary up to a scaling factor: F_n^* F_n = F_n F_n^* = nI (check this fact). Therefore F_n^{-1} = \frac{1}{n}F^*_n * Can be multiplied by a vector (called discrete Fourier transform or DFT) with \mathcal{O}(n \log n) complexity (called fast Fourier transform or FFT)! FFT helps to analyze spectrum of a signal and, as we will see later, helps to do fast mutiplications with certain types of matrices.
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
N = 1000
dt = 1.0 / 800.0

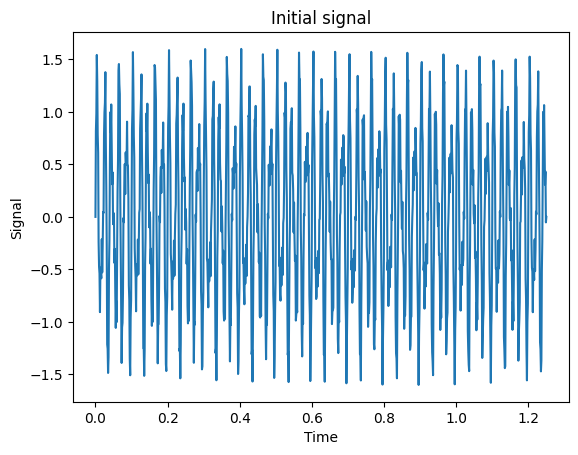

x = np.linspace(0.0, N*dt, N)
y = np.sin(50.0 * 2.0*np.pi*x) + 0.5*np.sin(80.0 * 2.0*np.pi*x) + 0.2*np.sin(300.0 * 2.0*np.pi*x)
plt.plot(x, y)
plt.xlabel('Time')
plt.ylabel('Signal')
plt.title('Initial signal')Text(0.5, 1.0, 'Initial signal')

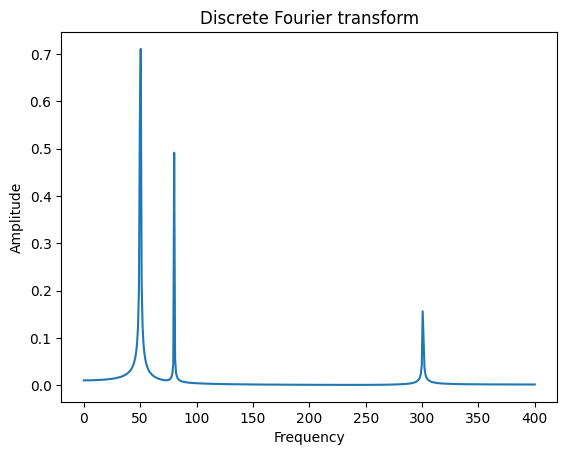

yf = np.fft.fft(y)
xf = np.linspace(0.0, 1.0/(2.0*dt), N//2)
plt.plot(xf, 2.0/N * np.abs(yf[0:N//2])) #Note: N/2 to N will give negative frequencies
plt.xlabel('Frequency')
plt.ylabel('Amplitude')
plt.title('Discrete Fourier transform')Text(0.5, 1.0, 'Discrete Fourier transform')
Here we consider a matrix interpretation of the standard Cooley-Tukey algorithm (1965), which has underlying divide and conquer idea. Note that in packages more advanced versions are used.
Let n be a power of 2.
First of all we permute the rows of the Fourier matrix such that the first n/2 rows of the new matrix had row numbers 1,3,5,\dots,n-1 and the last n/2 rows had row numbers 2,4,6\dots,n.
This permutation can be expressed in terms of multiplication by permutation matrix P_n:
P_n = \begin{pmatrix} 1 & 0 & 0 & 0 & \dots & 0 & 0 \\ 0 & 0 & 1 & 0 &\dots & 0 & 0 \\ \vdots & & & & & & \vdots \\ 0 & 0 & 0 & 0 &\dots & 1 & 0 \\ \hline 0 & 1 & 0 & 0 & \dots & 0 & 0 \\ 0 & 0 & 0 & 1 &\dots & 0 & 0 \\ \vdots & & & & & & \vdots \\ 0 & 0 & 0 & 0 &\dots & 0 & 1 \end{pmatrix},
Hence,
P_n F_n = \begin{pmatrix} 1 & 1 & 1 & \dots & 1 \\ 1 & w^{2\cdot 1}_n & w^{2\cdot 2}_n & \dots & w^{2\cdot (n-1)}_n\\ 1 & w^{4\cdot 1}_n & w^{4\cdot 2}_n & \dots & w^{4\cdot (n-1)}_n\\ \vdots & & & & \vdots\\ 1 & w^{(n-2)\cdot 1}_n & w^{(n-2)\cdot 2}_n & \dots & w^{(n-2)\cdot (n-1)}_n\\ \hline 1 & w^{1\cdot 1}_n & w^{1\cdot 2}_n & \dots & w^{1\cdot (n-1)}_n\\ 1 & w^{3\cdot 1}_n & w^{3\cdot 2}_n & \dots & w^{3\cdot (n-1)}_n\\ \vdots & & & & \vdots\\ 1 & w^{(n-1)\cdot 1}_n & w^{(n-1)\cdot 2}_n & \dots & w^{(n-1)\cdot (n-1)}_n\\ \end{pmatrix},
Now let us imagine that we separated its columns and rows by two parts each of size n/2.
As a result we get 2\times 2 block matrix that has the following form
P_n F_n = \begin{pmatrix} \left\{w^{2kl}_n\right\} & \left\{w_n^{2k\left(\frac{n}{2} + l\right)}\right\} \\ \left\{w_n^{(2k+1)l}\right\} & \left\{w_n^{(2k+1)\left(\frac{n}{2} + l\right)}\right\} \end{pmatrix}, \quad k,l = 0,\dots, \frac{n}{2}-1.
So far it does not look like something that works faster :) But we will see that in a minute. Lets have a more precise look at the first block \left\{w^{2kl}_n\right\}:
w^{2kl}_n = e^{-2kl\frac{2\pi i}{n}} = e^{-kl\frac{2\pi i}{n/2}} = w^{kl}_{n/2}.
So this block is exactly twice smaller Fourier matrix F_{n/2}!
The block \left\{w_n^{(2k+1)l}\right\} can be written as
w_n^{(2k+1)l} = w_n^{2kl + l} = w_n^{l} w_n^{2kl} = w_n^{l} w_{n/2}^{kl},
which can be written as W_{n/2}F_{n/2}, where
W_{n/2} = \text{diag}(1,w_n,w_n^2,\dots,w_n^{n/2-1}).
Doing the same tricks for the other blocks we will finally get
P_n F_n = \begin{pmatrix} F_{n/2} & F_{n/2} \\ F_{n/2}W_{n/2} & -F_{n/2}W_{n/2} \end{pmatrix} = \begin{pmatrix} F_{n/2} & 0 \\ 0 & F_{n/2} \end{pmatrix} \begin{pmatrix} I_{n/2} & I_{n/2} \\ W_{n/2} & -W_{n/2} \end{pmatrix}.
#FFT vs full matvec
import time
import numpy as np
import scipy as sp
import scipy.linalg
n = 10000
F = sp.linalg.dft(n)
x = np.random.randn(n)
y_full = F.dot(x)
full_mv_time = %timeit -q -o F.dot(x)
print('Full matvec time =', full_mv_time.average)
y_fft = np.fft.fft(x)
fft_mv_time = %timeit -q -o np.fft.fft(x)
print('FFT time =', fft_mv_time.average)
print('Relative error =', (np.linalg.norm(y_full - y_fft)) / np.linalg.norm(y_full))Full matvec time = 0.016554963692857142
FFT time = 6.18095107428571e-05
Relative error = 1.5329028805883414e-12FFT helps to multiply fast by certain types of matrices. We start from a circulant matrix:
C = \begin{pmatrix} c_0 & c_{n-1} & c_{n-2} & \dots & c_1 \\ c_{1} & c_{0} & c_{n-1} & \dots & c_2 \\ c_{2} & c_{1} & c_0 & \dots & c_3 \\ \dots & \dots & \dots & \dots & \dots \\ c_{n-1} & c_{n-2} & c_{n-3} & \dots & c_0 \end{pmatrix}
Theorem. Let C be a circulant matrix of size n\times n and let c be it’s first column , then
C = \frac{1}{n} F_n^* \text{diag}(F_n c) F_n
Proof. - Consider a number
\lambda (\omega) = c_0 + \omega c_1 + \dots + \omega^{n-1} c_{n-1},
where \omega is any number such that \omega^n=1. - Lets multiply \lambda by 1,\omega,\dots, \omega^{n-1}:
\begin{split} \lambda & = c_0 &+& \omega c_1 &+& \dots &+& \omega^{n-1} c_{n-1},\\ \lambda\omega & = c_{n-1} &+& \omega c_0 &+& \dots &+& \omega^{n-1} c_{n-2},\\ \lambda\omega^2 & = c_{n-2} &+& \omega c_{n-1} &+& \dots &+& \omega^{n-1} c_{n-3},\\ &\dots\\ \lambda\omega^{n-1} & = c_{1} &+& \omega c_{2} &+& \dots &+& \omega^{n-1} c_{0}. \end{split}
\lambda(\omega) \cdot \begin{pmatrix} 1&\omega & \dots& \omega^{n-1} \end{pmatrix} = \begin{pmatrix} 1&\omega&\dots& \omega^{n-1} \end{pmatrix} \cdot C.
\Lambda F_n = F_n C
and finally
C = \frac{1}{n} F^*_n \Lambda F_n, \quad \text{where}\quad \Lambda = \text{diag}(F_nc) \qquad\blacksquare
Cx = \frac{1}{n} F_n^* \text{diag}(F_n c) F_n x = \text{ifft}\left( \text{fft}(c) \circ \text{fft}(x)\right)
where \circ denotes elementwise product (Hadamard product) of two vectors (since \text{diag}(a)b = a\circ b) and ifft denotes inverse Fourier transform F^{-1}_n.
import numpy as np
import scipy as sp
import scipy.linalg
def circulant_matvec(c, x):
return np.fft.ifft(np.fft.fft(c) * np.fft.fft(x))
n = 5000
c = np.random.random(n)
C = sp.linalg.circulant(c)
x = np.random.randn(n)
y_full = C.dot(x)
full_mv_time = %timeit -q -o C.dot(x)
print('Full matvec time =', full_mv_time.average)
y_fft = circulant_matvec(c, x)
fft_mv_time = %timeit -q -o circulant_matvec(c, x)
print('FFT time =', fft_mv_time.average)
print('Relative error =', (np.linalg.norm(y_full - y_fft)) / np.linalg.norm(y_full))Full matvec time = 0.003428939464285707
FFT time = 0.0001001016214142856
Relative error = 1.307050346126901e-15Now we get back to Toeplitz matrices!
T = \begin{pmatrix} t_0 & t_{-1} & t_{-2} & t_{-3}& \dots & t_{1-n} \\ t_{1} & t_{0} & t_{-1} & t_{-2}& \dots & t_{2-n} \\ t_{2} & t_{1} & t_0 & t_{-1} &\dots & t_{3-n} \\ t_{3} & t_{2} & t_1 & t_0 & \dots & t_{4-n} \\ \dots & \dots & \dots & \dots & \dots & \dots\\ t_{n-1} & t_{n-2} & t_{n-3} & t_{n-4} &\dots &t_0 \end{pmatrix},
or equivalently T_{ij} = t_{i-j}.
Matvec operation can be written as
y_i = \sum_{j=1}^n t_{i-j} x_j,
which can be interpreted as a discrete convolution of filter t_i and signal x_i. For simplicity the size of the filter t is such that the sizes of the input and output signals are the same. Generally, filter size can be arbitrary.
Fast convolution computation has a variety of applications, for instance, in signal processing or partial differential and integral equations. For instance, here is the smoothing of a signal:
from scipy import signal
%matplotlib inline
import matplotlib.pyplot as plt

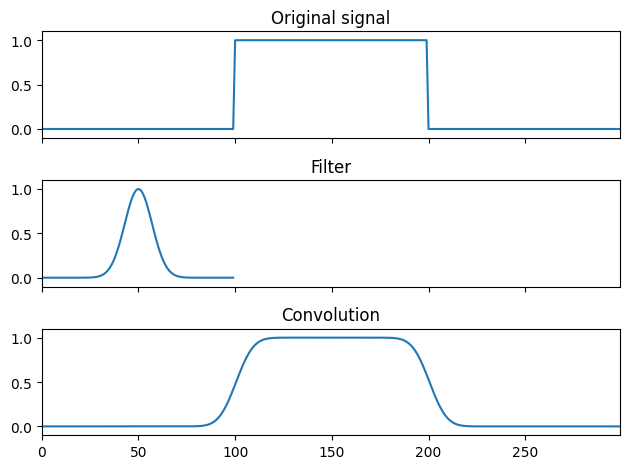

alpha = 0.01
sig = np.repeat([0., 1., 0.], 100)
filt = np.exp(-alpha * (np.arange(100)-50)**2)
filtered = signal.convolve(sig, filt, mode='same') / sum(filt)
fig, (ax_orig, ax_filt, ax_filtered) = plt.subplots(3, 1, sharex=True)
ax_orig.plot(sig)
ax_orig.margins(0, 0.1)
ax_filt.plot(filt)
ax_filt.margins(0, 0.1)
ax_filtered.plot(filtered)
ax_filtered.margins(0, 0.1)
ax_orig.set_title('Original signal')
ax_filt.set_title('Filter')
ax_filtered.set_title('Convolution')
fig.tight_layout()
Key point: the multiplication by a Toeplitz matrix can be reduced to the multiplication by a circulant.
C = \begin{pmatrix} T & \dots \\ \dots & \dots \end{pmatrix}.
C = \begin{pmatrix} t_0 & t_{-1} & t_{-2} & t_{2} & t_{1}\\ t_{1} & t_{0} & t_{-1} & t_{-2} & t_{2} \\ t_{2} & t_{1} & t_0 & t_{-1} & t_{-2} \\ t_{-2}& t_{2} & t_{1} & t_0 & t_{-1} \\ t_{-1} & t_{-2} & t_{2} & t_{1} & t_0 \end{pmatrix}.
\begin{pmatrix} y_1 \\ y_2 \\ y_3 \\ \star \\ \star \end{pmatrix} = \begin{pmatrix} t_0 & t_{-1} & t_{-2} & t_{2} & t_{1}\\ t_{1} & t_{0} & t_{-1} & t_{-2} & t_{2} \\ t_{2} & t_{1} & t_0 & t_{-1} & t_{-2} \\ t_{-2}& t_{2} & t_{1} & t_0 & t_{-1} \\ t_{-1} & t_{-2} & t_{2} & t_{1} & t_0 \end{pmatrix} \begin{pmatrix} x_1 \\ x_2 \\ x_3 \\ 0 \\ 0 \end{pmatrix}= \text{ifft}(\text{fft}(\begin{pmatrix} t_0 \\ t_{1} \\ t_{2} \\ t_{-2} \\ t_{-1} \end{pmatrix})\circ \text{fft}(\begin{pmatrix} x_1 \\ x_2 \\ x_3 \\ 0 \\ 0 \end{pmatrix})).
The 2-dimensional convolution is defined as
y_{i_1i_2} = \sum_{j_1,j_2=1}^n t_{i_1-j_1, i_2-j_2} x_{j_1 j_2}.
Note that x and y are 2-dimensional arrays and T is 4-dimensional. To reduce this expression to matrix-by-vector product we have to reshape x and y into long vectors:
\text{vec}(x) = \begin{pmatrix} x_{11} \\ \vdots \\ x_{1n} \\ \hline \\ \vdots \\ \hline \\ x_{n1} \\ \vdots \\ x_{nn} \end{pmatrix}, \quad \text{vec}(y) = \begin{pmatrix} y_{11} \\ \vdots \\ y_{1n} \\ \hline \\ \vdots \\ \hline \\ y_{n1} \\ \vdots \\ y_{nn} \end{pmatrix}.
In this case matrix T is block Toeplitz with Toeplitz blocks: (BTTB)
T = \begin{pmatrix} T_0 & T_{-1} & T_{-2} & \dots & T_{1-n} \\ T_{1} & T_{0} & T_{-1} & \dots & T_{2-n} \\ T_{2} & T_{1} & T_0 & \dots & T_{3-n} \\ \dots & \dots & \dots & \dots & \dots\\ T_{n-1} & T_{n-2} & T_{n-3} &\dots &T_0 \end{pmatrix}, \quad \text{where} \quad T_k = t_{k, i_2 - j_2}\quad \text{are Toeplitz matrices}
To get fast matvec we need to embed block Toeplitz matrix with Toeplitz blocks into the block circulant matrix with circulant blocks. The analog of \begin{pmatrix} y_1 \\ y_2 \\ y_3 \\ \star \\ \star \end{pmatrix} = \text{ifft}(\text{fft}(\begin{pmatrix} t_0 \\ t_{1} \\ t_{2} \\ t_{-2} \\ t_{-1} \end{pmatrix})\circ\text{fft}(\begin{pmatrix} x_1 \\ x_2 \\ x_3 \\ 0 \\ 0 \end{pmatrix})). will look like \begin{pmatrix} y_{11} & y_{12} & y_{13} & \star & \star \\ y_{21} & y_{22} & y_{23} & \star & \star \\ y_{31} & y_{32} & y_{33} & \star & \star \\ \star & \star & \star & \star & \star \\ \star & \star & \star & \star & \star \\ \end{pmatrix} = \text{ifft2d}(\text{fft2d}(\begin{pmatrix} t_{0,0} & t_{1,0} & t_{2,0} & t_{-2,0} & t_{-1,0} \\ t_{0,1} & t_{1,1} & t_{2,1} & t_{-2,1} & t_{-1,1} \\ t_{0,2} & t_{1,2} & t_{2,2} & t_{-2,2} & t_{-1,2} \\ t_{0,-2} & t_{1,-2} & t_{2,-2} & t_{-2,-2} & t_{-1,-2} \\ t_{0,-1} & t_{1,-1} & t_{2,-1} & t_{-2,-1} & t_{-1,-1} \end{pmatrix}) \circ \text{fft2d}(\begin{pmatrix}x_{11} & x_{12} & x_{13} & 0 & 0 \\ x_{21} & x_{22} & x_{23} & 0 & 0 \\ x_{31} & x_{32} & x_{33} & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 \\ \end{pmatrix})), where fft2d is 2-dimensional fft that consists of one-dimensional transforms, applied first to rows and and then to columns (or vice versa).
# Blurring and Sharpening Lena by convolution
from scipy import signal
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
from scipy import misc
import imageio
filter_size = 5
filter_blur = np.ones((filter_size, filter_size)) / filter_size**2
lena = imageio.imread('./lena512.jpg')
#lena = misc.face()
#lena = lena[:, :, 0]
blurred = signal.convolve2d(lena, filter_blur, boundary='symm', mode='same')
fig, ax = plt.subplots(2, 2, figsize=(8, 8))
ax[0, 0].imshow(lena[200:300, 200:300], cmap='gray')
ax[0, 0].set_title('Original Lena')
ax[0, 1].imshow(blurred[200:300, 200:300], cmap='gray')
ax[0, 1].set_title('Blurred Lena')
ax[1, 0].imshow((lena - blurred)[200:300, 200:300], cmap='gray')
ax[1, 0].set_title('Lena $-$ Blurred Lena')
ax[1, 1].imshow(((lena - blurred)*3 + blurred)[200:300, 200:300], cmap='gray')
ax[1, 1].set_title('$3\cdot$(Lena $-$ Blurred Lena) + Blurred Lena')
fig.tight_layout()--------------------------------------------------------------------------- ModuleNotFoundError Traceback (most recent call last) Cell In [7], line 8 6 get_ipython().run_line_magic('matplotlib', ' inline') 7 from scipy import misc ----> 8 import imageio 10 filter_size = 5 11 filter_blur = np.ones((filter_size, filter_size)) / filter_size**2 ModuleNotFoundError: No module named 'imageio'
T x = f.
we have the spectral theorem
C = \frac{1}{n}F^* \Lambda F, \quad C^{-1} = \frac{1}{n}F^* \Lambda^{-1} F,
but for a general Toeplitz matrices, it is not a trivial question.
Not-a-bad recipe for Toeplitz linear system is to use iterative method (fast matvec is available).
A good choice for a preconditioner is a circulant matrix.
A natural idea is to use circulants as preconditioners, since they are easy to invert.
The first preconditioner was the preconditioner by Raymond Chan and Gilbert Strang, who proposed to take the first column of the matrix and use it to generate the circulant.
The second preconditioner is the Tony Chan preconditioner, which is also very natural:
C = \arg \min_P \Vert P - T \Vert_F.
import numpy as np
import scipy.linalg
%matplotlib inline
import matplotlib.pyplot as plt
import scipy as sp
n = 100
c = np.zeros(n)
c[0] = -2
c[1] = 1
Tm = sp.linalg.toeplitz(c, c)
c1 = sp.linalg.circulant(c) #Strang preconditioner
Fmat = 1.0/np.sqrt(n) * np.fft.fft(np.eye(n)) #Poor man's Fourier matrix
d2 = np.diag(Fmat.conj().dot(Tm).dot(Fmat))
c2 = Fmat.dot(np.diag(d2)).dot(Fmat.conj().T)
mat = np.linalg.inv(c1).dot(Tm)
ev = np.linalg.eigvals(mat).real

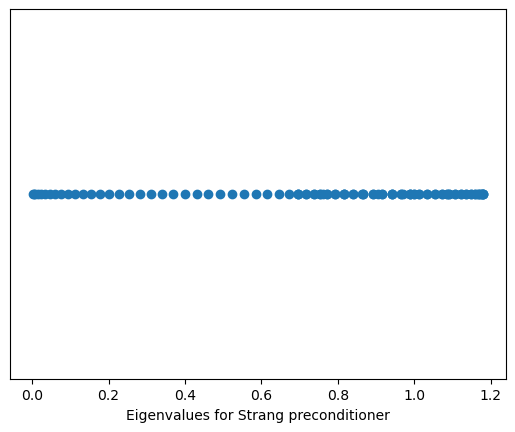

plt.plot(np.sort(ev), np.ones(n), 'o')
plt.xlabel('Eigenvalues for Strang preconditioner')
plt.gca().get_yaxis().set_visible(False)
mat = np.linalg.inv(c2).dot(Tm)
ev = np.linalg.eigvals(mat).real
plt.figure()
plt.plot(np.sort(ev), np.ones(n), 'o')
plt.xlabel('Eigenvalues for T. Chan Preconditioner')
plt.gca().get_yaxis().set_visible(False)
(x \star y)(t) = \int_{-\infty}^{+\infty} x(\tau)y(\tau + t)d \tau
(x * y)(t) = \int_{-\infty}^{+\infty} x(\tau) y(t - \tau) d \tau.
Source is here
x(t) \star y(t) = x(-t) * y(t)
Source of gif is here
import torchvision.models as models
vgg16 = models.vgg16(pretrained=True)
print(vgg16)for ch in vgg16.children():
features = ch
break
print(features)
for name, param in features.named_parameters():
print(name, param.shape)plt.figure(figsize=(20, 17))
for i, filter in enumerate(features[2].weight):
plt.subplot(16, 16, i+1)
plt.imshow(filter[0, :, :].detach(), cmap='gray')
plt.axis('off')
plt.show()from PIL import Image
img = Image.open("./tiger.jpeg")
plt.imshow(img)
plt.show()from torchvision import transforms
transform = transforms.Compose([
transforms.RandomResizedCrop(224),
transforms.ToTensor(),
transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
])
img_ = transform(img)
img_ = img_.unsqueeze(0)
print(img_.size())
plt.imshow(img_[0].permute(1, 2, 0))# After the first convolutional layer
output1 = features[0](img_)
print(output1.size())
plt.figure(figsize=(20, 17))
for i, f_map in enumerate(output1[0]):
plt.subplot(8, 8, i+1)
plt.imshow(f_map.detach(), cmap="gray")
plt.axis('off')
plt.show()# After the second convolutional layer
output2 = features[2](features[1](output1))
print(output2.size())
plt.figure(figsize=(20, 17))
for i, f_map in enumerate(output2[0]):
plt.subplot(8, 8, i+1)
plt.imshow(f_map.detach(), cmap="gray")
plt.axis('off')
plt.show()output3 = features[5](features[4](features[3](output2)))
print(output3.size())
plt.figure(figsize=(20, 20))
for i, f_map in enumerate(output3[0]):
if i + 1 == 65:
break
plt.subplot(8, 8, i+1)
plt.imshow(f_map.detach(), cmap="gray")
plt.axis('off')
plt.show()feature block one gets 512 channels (we start from 3 (RGB)) and significant reduction of the spatial size of imageRecent achievements for learning structured matrices include [Monarch matrices] (https://arxiv.org/pdf/2204.00595.pdf) and here Monarch mixer
Monarch matrix is given as
\mathbf{M}=\left(\prod_{i=1}^p \mathbf{P}_i \mathbf{B}_i\right) \mathbf{P}_0
where each \mathbf{P}_i is related to the ‘base \sqrt[p]{N}’ variant of the bit-reversal permutation, and \mathbf{B}_i is a block-diagonal matrix with block size b. Setting b=\sqrt[p]{N} achieves sub-quadratic compute cost. For example, for p=2, b=\sqrt{N}, Monarch matrices require O\left(N^{3 / 2}\right) compute in sequence length N.
If we treat Monarch matrix as a block matrix with m \times m block, the elements have the form:
M_{\ell j k i}=L_{j \ell k} R_{k j i}
This is rank-1 approximation in disguise.
import numpy as np
import matplotlib.pyplot as plt
n = 1024
f = np.fft.fft(np.eye(n))
print('Rectangular block, approximate low rank')
print(np.linalg.svd(f[:16, :n//16])[1])
print('Special low-rank submatrices, exact low-rank')
m1 = f[::16, ::n//16]
print(m1.shape)
print(np.linalg.svd(m1)[1])Rectangular block, approximate low rank
[2.83322231e+01 1.44781645e+01 3.38480168e+00 4.57202919e-01
4.42705408e-02 3.33299146e-03 2.03024059e-04 1.02439715e-05
4.34189364e-07 1.55704460e-08 4.73047845e-10 1.21164373e-11
2.58444552e-13 4.26313612e-15 1.71409604e-15 6.10988185e-16]
Special low-rank submatrices, exact low-rank
(64, 16)
[3.20000000e+001 1.35213262e-014 3.69395699e-029 1.29572281e-044
1.33038472e-059 1.57392820e-074 1.98967388e-089 5.68668883e-105
2.40948199e-120 2.27046791e-135 4.41076069e-150 3.57770948e-166
3.18773973e-181 3.45410051e-196 3.80878284e-212 1.03087635e-228]from IPython.core.display import HTML
def css_styling():
styles = open("./styles/custom.css", "r").read()
return HTML(styles)
css_styling()--------------------------------------------------------------------------- FileNotFoundError Traceback (most recent call last) Cell In [1], line 5 3 styles = open("./styles/custom.css", "r").read() 4 return HTML(styles) ----> 5 css_styling() Cell In [1], line 3, in css_styling() 2 def css_styling(): ----> 3 styles = open("./styles/custom.css", "r").read() 4 return HTML(styles) File ~/miniconda3/envs/tensorflow/lib/python3.9/site-packages/IPython/core/interactiveshell.py:282, in _modified_open(file, *args, **kwargs) 275 if file in {0, 1, 2}: 276 raise ValueError( 277 f"IPython won't let you open fd={file} by default " 278 "as it is likely to crash IPython. If you know what you are doing, " 279 "you can use builtins' open." 280 ) --> 282 return io_open(file, *args, **kwargs) FileNotFoundError: [Errno 2] No such file or directory: './styles/custom.css'
